SPECIFICATIONS
(Can change without notification)
Additional Information
| Low Noise Motor | Low running noise, especially good for indoor home use. |
| Safety light Curtain | No Need extra door on entrance and exit side. |
Vertical Home Lift Specification
| Model | SJW2.0 |
| Lifting Height | Max 2,400mm |
| Load Capactiy | Max 320kg |
| Platform Size | 1,300 × 1,000mm (L×W) |
| Machine Dimension | 1,300 × 1,450 × 3,900mm(L×W×H) |
| Cabin Outer Dimension | 1,300 × 1,000 × 2,000mm(L×W×H) |
| Motor Power | 240v, single phase 50hz |
| Speed | 4-5m/min |
Mainly material & Drive Specification
| Lift Tower Material | Steel Plate with electrostatic powder coated. |
| Cabin material | Aluminium alloy structure and tempered glass. |
| Cabin Light | Yes |
| Hydraulic Cylinder | Diameter 60mm × 1 pcs |
| Drive | Hydraulic Drive |
| Hydraulic Pump | 2.2 kw |
Control & Installation
| Control | 3 control panels, one on concrete slab, one on second floor, one inside the platform. |
| Installation | Non pit installation, directly fixed to concrete ground. |
Safety Device
| Emergency Stop | The lift can be stopped immediately in case of any emergency. |
| Emergency Down | The platform can be lowered to ground in case of power failure. |

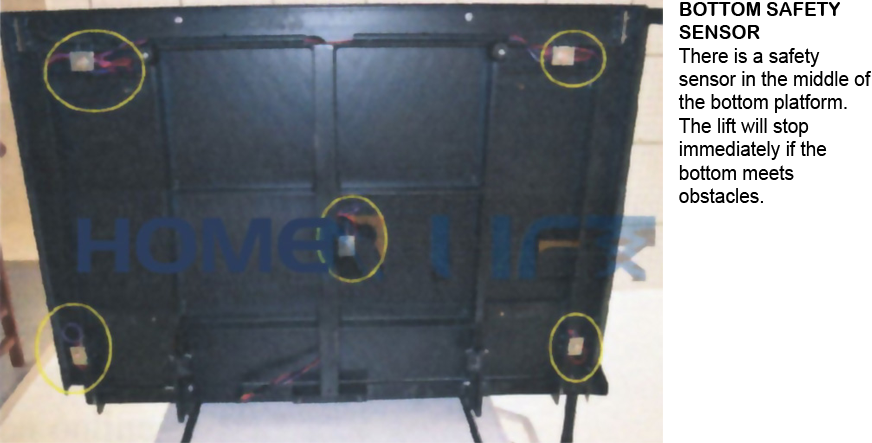

| Safety pan | Under platform, lift will stop immediately once it meets obstacle. |
SAFETY SPECIFICATIONS
(Specifications can change without notification)
